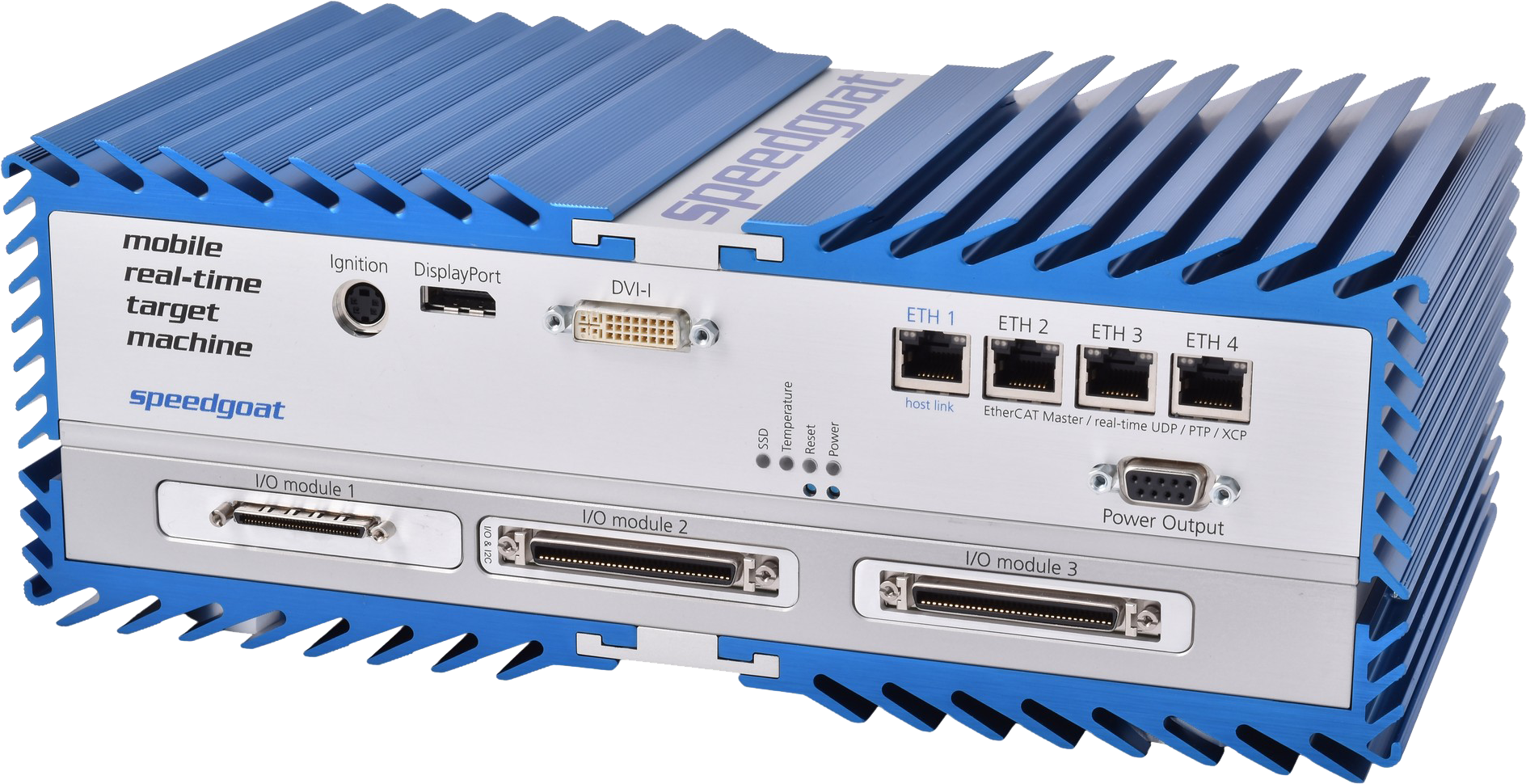

Type I ItemID 105201

Type II "Openframe" ItemID 105212

CPU - Default

Intel Celeron 1.4 GHz
2 cores

Intel Celeron 1.4 GHz
2 cores

CPU - Option

Intel Core i7 2.5 GHz
2 cores
(ItemID 105240)

Intel Core i7 2.5 GHz
2 cores
(ItemID 105940)

Operating System

Simulink Real-Time™

Simulink Real-Time™

MATLAB Release Support

All suported releases

All suported releases

Memory - Default

4GB DDR3 RAM
on-board soldered

4GB DDR3 RAM
on-board soldered

Memory - Options

12GB DDR3 RAM
on-board soldered
(ItemID 105299)

12GB DDR3 RAM
on-board soldered
(ItemID 105999)

Video interfaces for Simulink Real-time Target Scopes

1 x DVI/VGA
1 x DisplayPort
Target scope resolution supported: 1280x1024

1 x DVI/VGA
1 x DisplayPort
Target scope resolution supported: 1280x1024

USB for keyboard and UVC-compliant webcams

4 x USB 3.0 and 2 x USB 2.0

4 x USB 3.0 and 2 x USB 2.0

Host-Target GbE link
and XCP Slave

1 (Intel 82574IT)

1 (Intel 82574IT)

Gigabit Ethernet for real-time UDP, EtherCAT Master, XCP Master and PTP 1588

3 (Intel 82574IT)

3 (Intel 82574IT)

Serial Ports - Standard

4 x RS232
(for baud rates up to 120 kb/s)

4 x RS232
(for baud rates up to 120 kb/s)

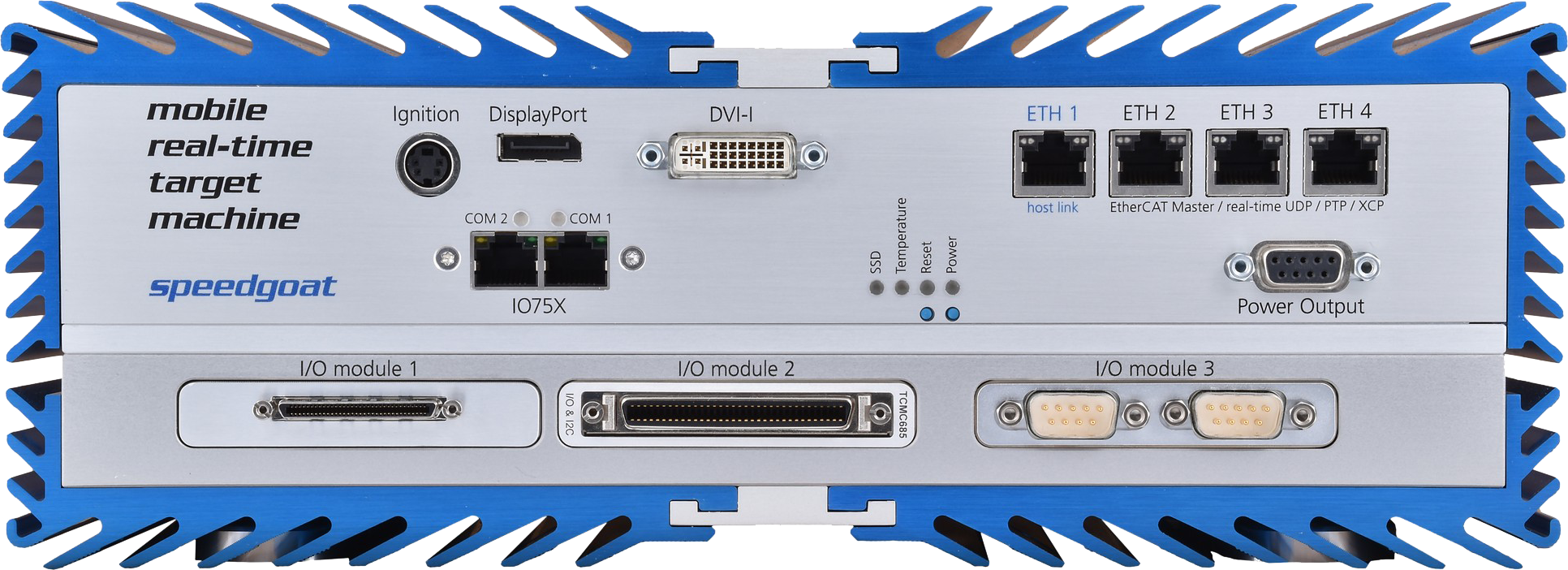

Serial Ports - Option

2 x RS232 (baud rates up to 115 kb/s)
2 x RS422/RS485 (baud rates up to 250 kb/s)
(ItemID 105285)

Slots for I/O modules - Standard

1 x XMC/PMC/CMC
2 x PMC/CMC
2 x mPCIe
(Use Option for further expansion)

1 x XMC/PMC/CMC
2 x PMC/CMC
2 x mPCIe
(Use Option for further expansion)

Slots for I/O modules - Option

3 x XMC/PMC/CMC
2 x mPCIe
(ItemID 105212)

3 x XMC/PMC/CMC
2 x mPCIe
(ItemID 105912)

Expansion for additional I/O modules

1 x PMC/XMC/CMC
2 x PMC/CMC
(ItemID 105210)

1 x PMC/XMC/CMC
2 x PMC/CMC
(ItemID 105910)

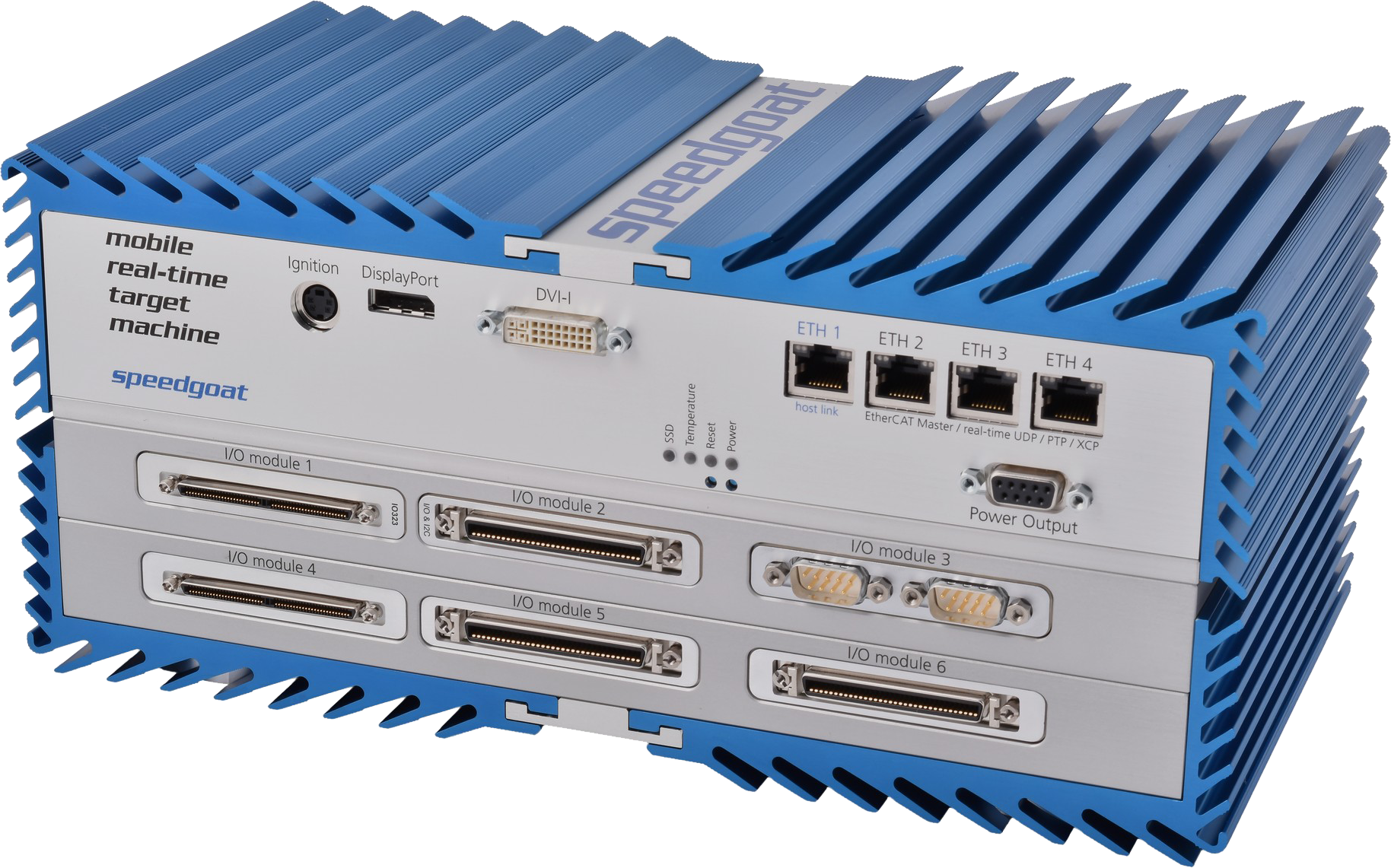

Expansion for additional I/O modules

3 x PMC/XMC/CMC
Up to 3 expansions possible
(ItemID 105211)

3 x PMC/XMC/CMC
Up to 3 expansions possible
(ItemID 105911)
