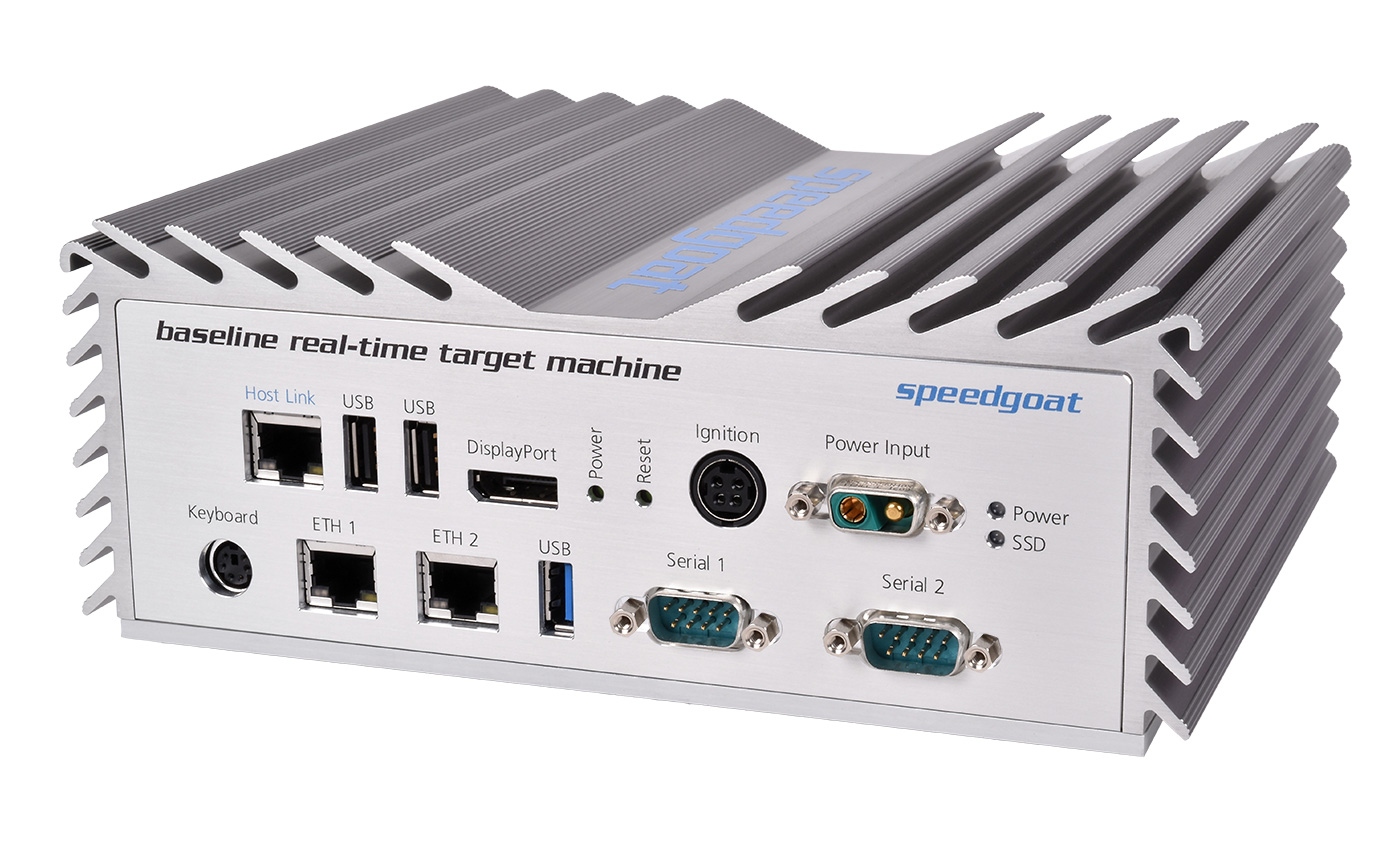

基本版实时目标机

搭载Intel 2.0 GHz四核CPU和可选配的FPGA的基本版实时目标机是MathWorks和Speedgoat的入门级解决方案，使用MATLAB和Simulink进行实时仿真和测试。这款轻型、坚固和高性能的实时目标机是运行只需要上百个I/O通道的复杂模型的完美解决方案。
这款目标机可以作为航空航天、汽车、电机和电力、消费电子、医疗设备和机器人等各种应用场合和工业领域的实时开发平台。

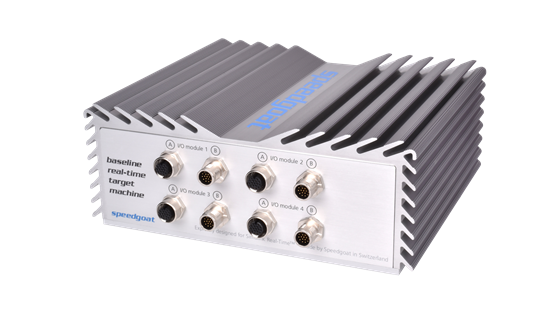

基本版实时目标机具有坚固的外壳和M12连接器，可以随意移动：从办公室到车载，甚至是海上。外壳设计可以承受高强度的冲击和振动，并具有一个静音无风扇的被动式散热器。基本版实时机最多支持6个I/O模块，包括最新的FPGA（Xilinx Artix-7和Kintex-7）模块和各种I/O接口模。

主要型号规格

	Baseline-S ItemID 107100	Baseline-M ItemID 107101	Baseline Openframe ItemID 107900
CPU - Default	Intel Celeron 2 GHz 4 cores	Intel Celeron 2 GHz 4 cores	Intel Celeron 2 GHz 4 cores
CPU - Extended Temperature Option	Intel Atom 1.91 GHz 4 cores (ItemID 107110)	Intel Atom 1.91 GHz 4 cores (ItemID 107110)	Intel Atom 1.91 GHz 4 cores (ItemID 107110)
Operating System	Simulink Real-Time™	Simulink Real-Time™	Simulink Real-Time™
Supported from MATLAB:	2016a or newer	2016a or newer	2016a or newer
Memory - Default	4GB DDR3 RAM	4GB DDR3 RAM	4GB DDR3 RAM
Video interfaces for Simulink Real-time Target Scopes	1 x DisplayPort Target scope resolution supported: 1280x1024	1 x DisplayPort Target scope resolution supported: 1280x1024	1 x DisplayPort Target scope resolution supported: 1280x1024
USB for keyboard and UVC-compliant webcams	1 x USB 3.0 and 2 x USB 2.0	1 x USB 3.0 and 2 x USB 2.0	1 x USB 3.0 and 2 x USB 2.0
Host-Target GbE link and XCP Slave	1 (Intel I210)	1 (Intel I210)	1 (Intel I210)
Gigabit Ethernet for real-time UDP, EtherCAT Master and XCP Master	2 (Intel I210)	2 (Intel I210)	2 (Intel I210)
Serial Ports	2 x RS232 (for baud rates up to 115.2 kb/s)	2 x RS232 (for baud rates up to 115.2 kb/s)	2 x RS232 (for baud rates up to 115.2 kb/s)
Slots for I/O modules - Standard	4 x mPCIe	4 x mPCIe 2 x XMC/PMC/CMC	4 x mPCIe
Expansion for additional I/O modules			3 x PMC/XMC/CMC (ItemID 107150 per additional I/O module)
